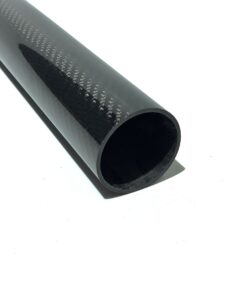

Carbon fiber tubes

Custom parameters:
Ø 6-150 mm
Lenght 0,5 – 3 m
Fabric T300/700

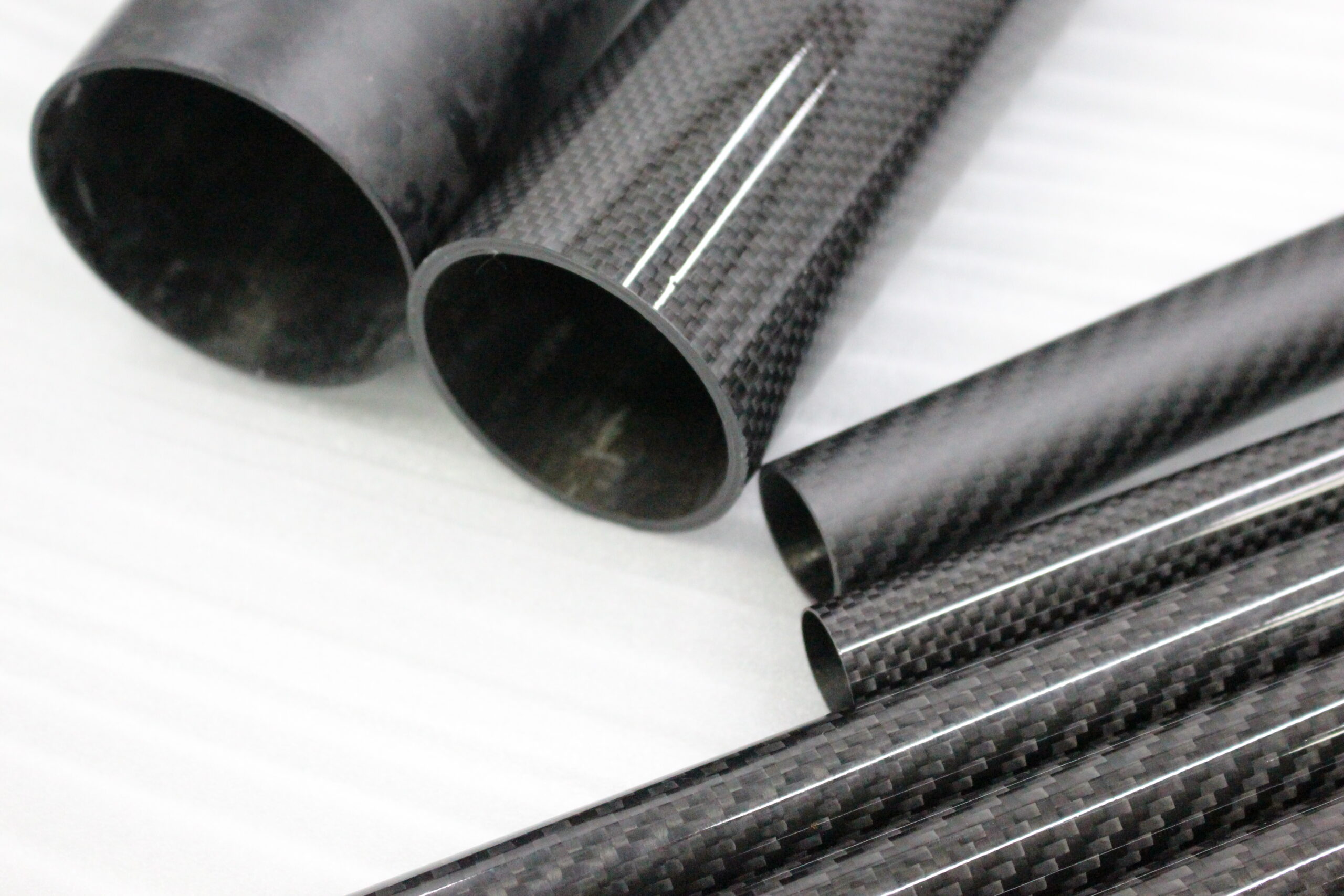

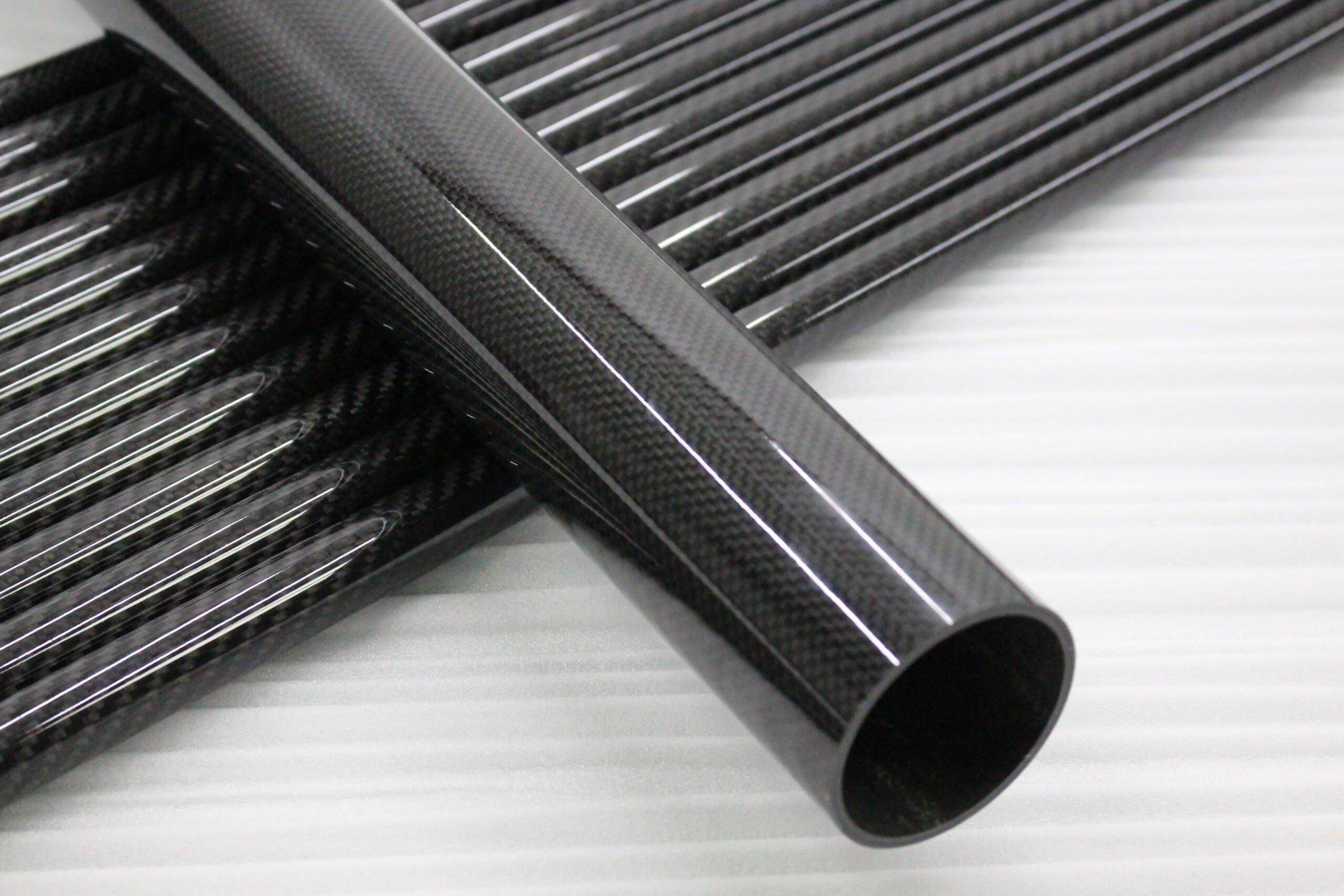

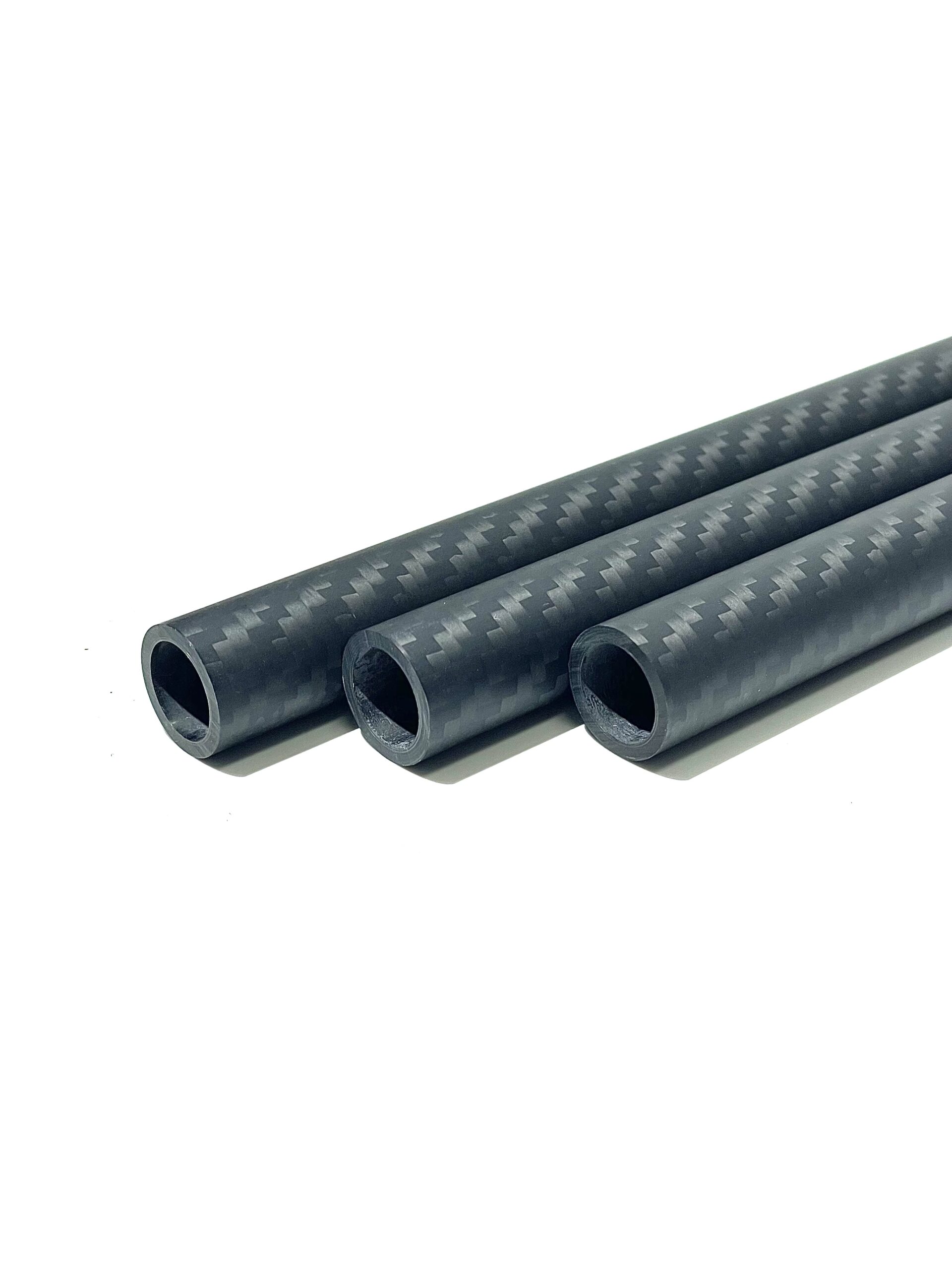

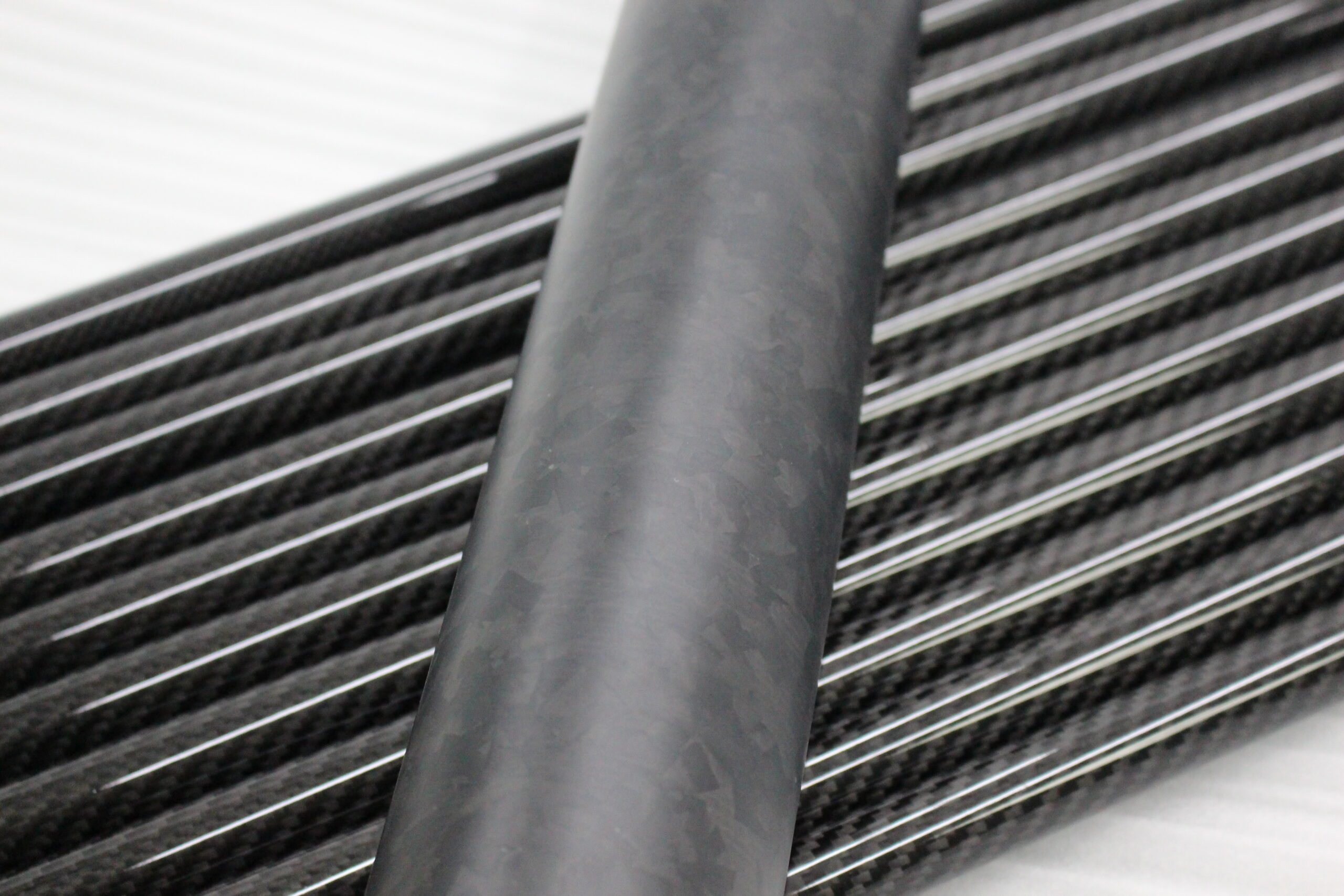

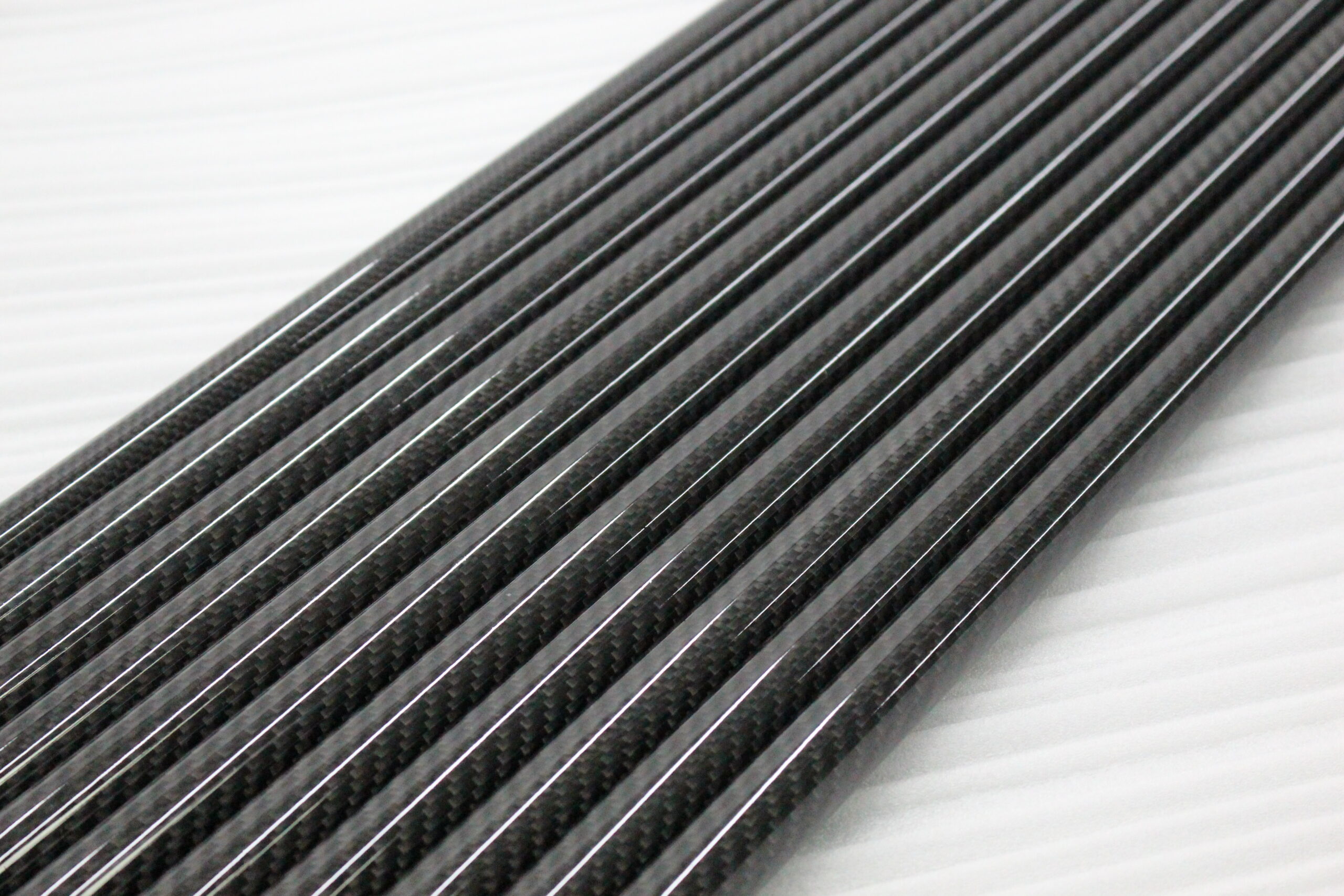

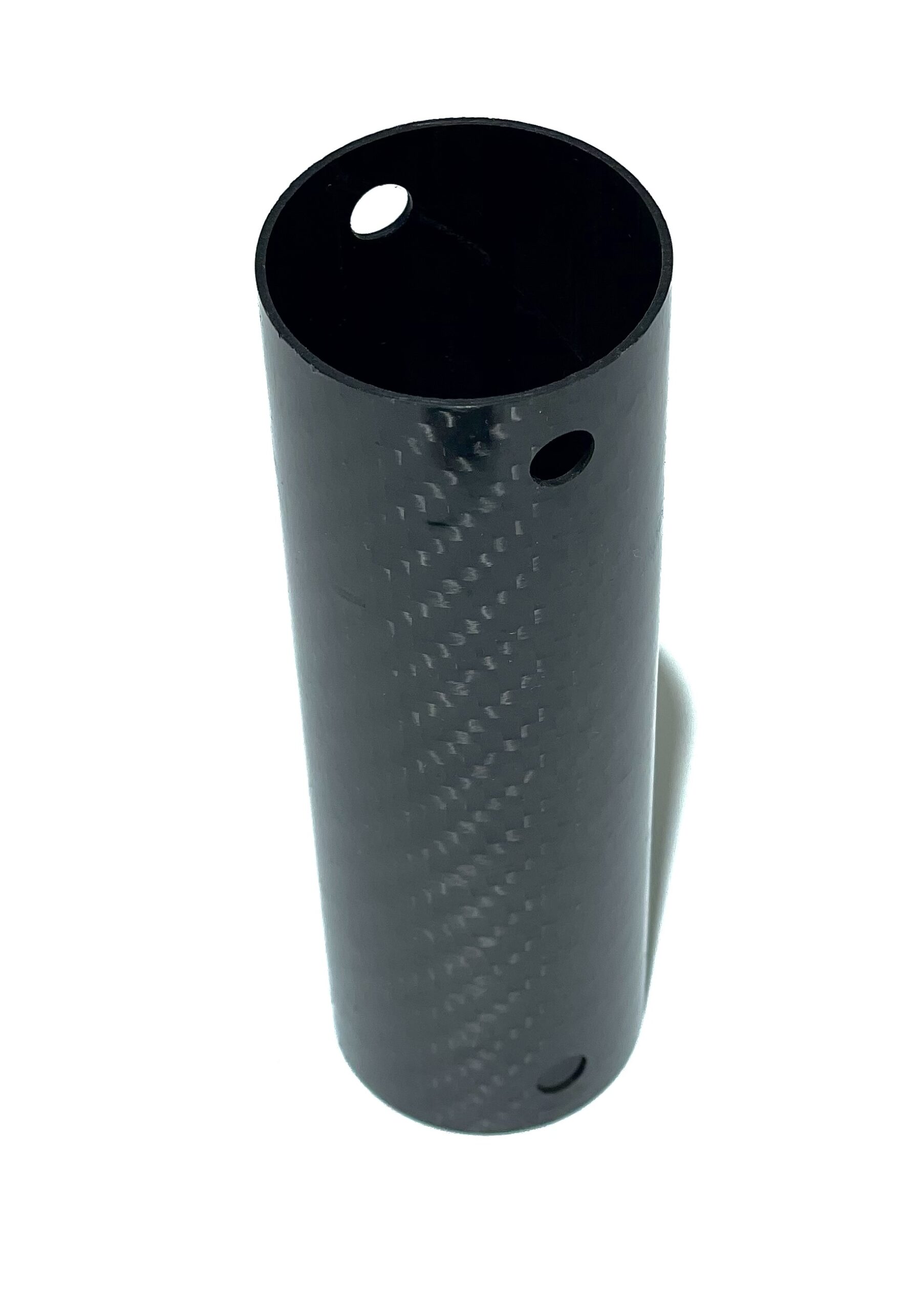

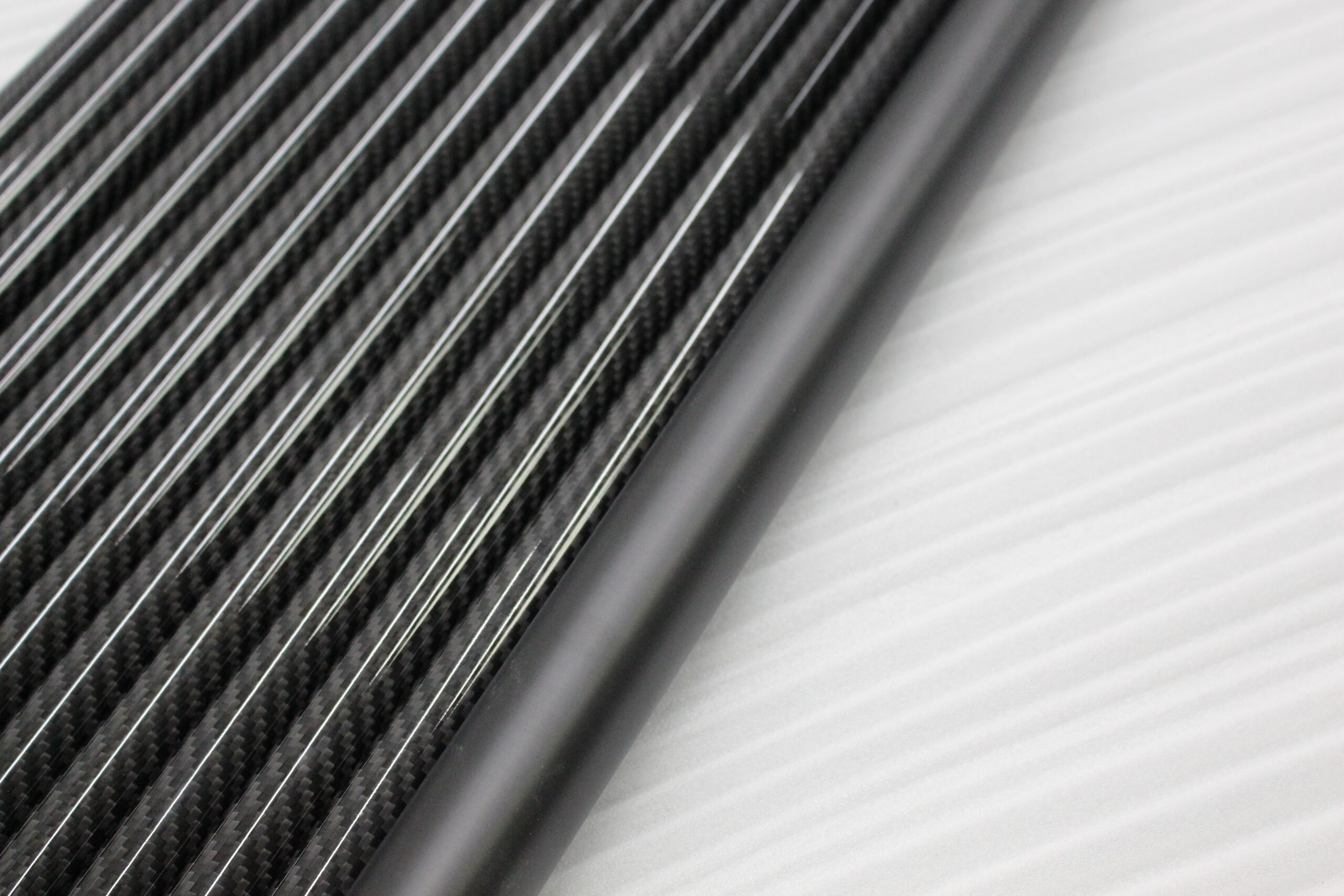

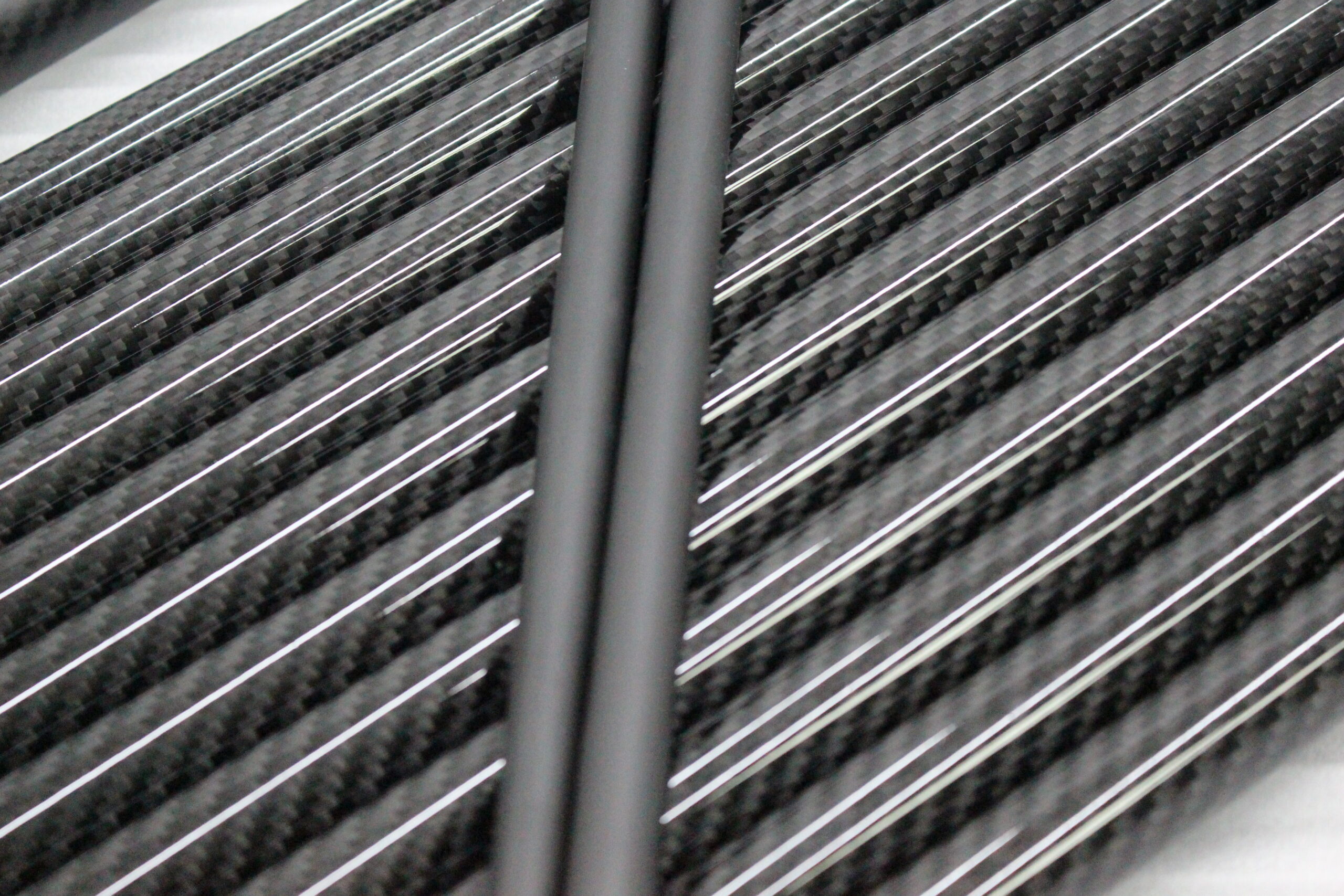

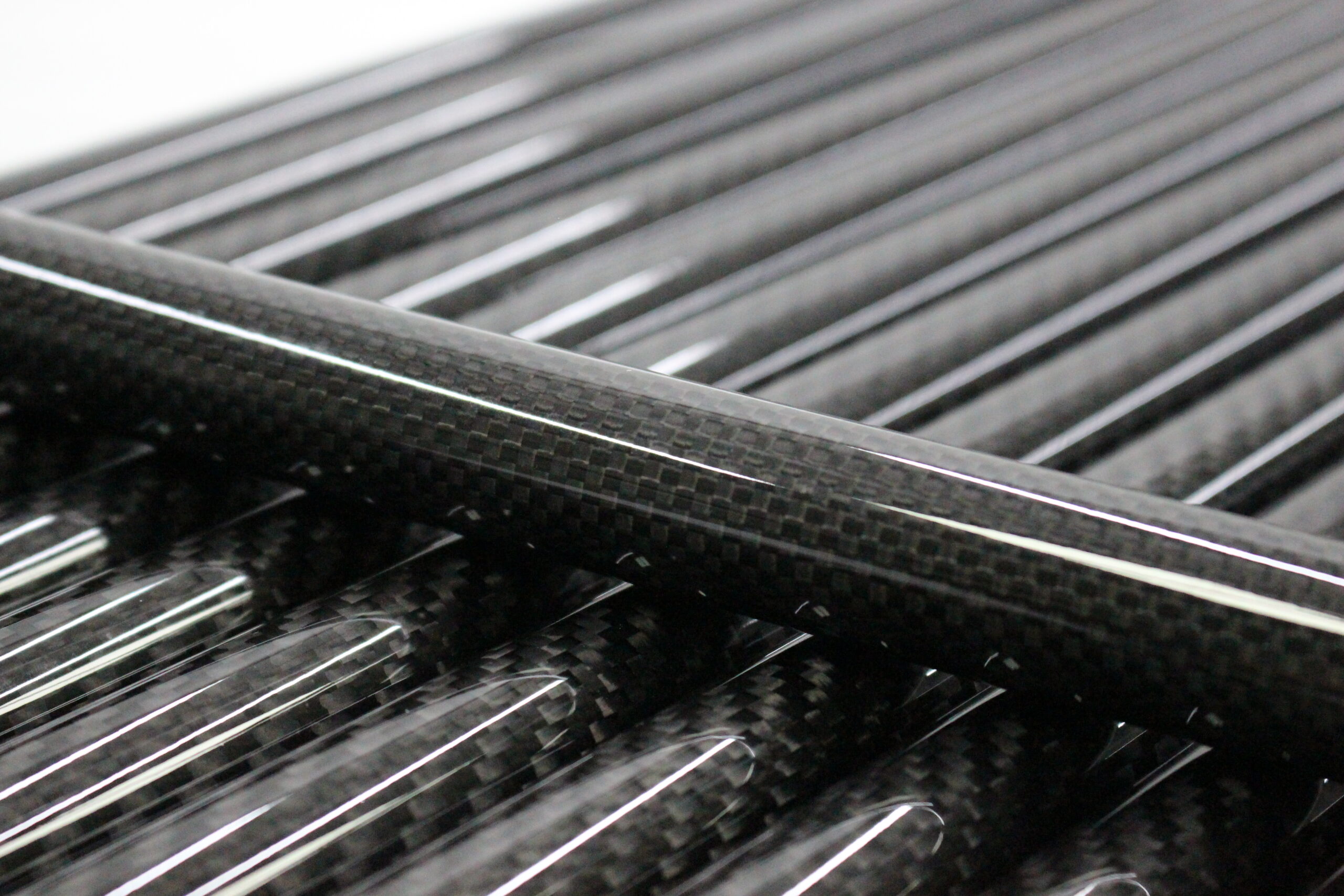

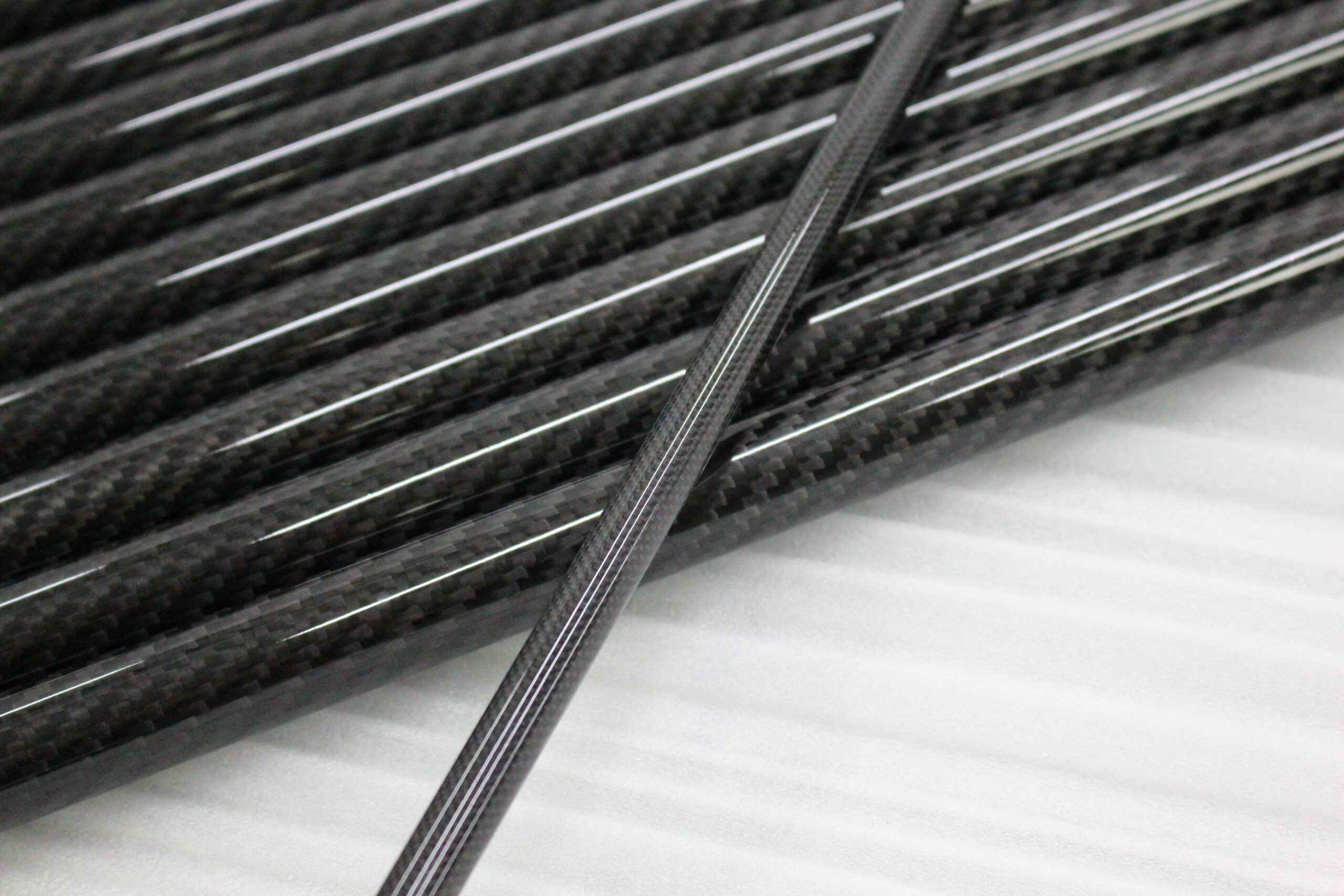

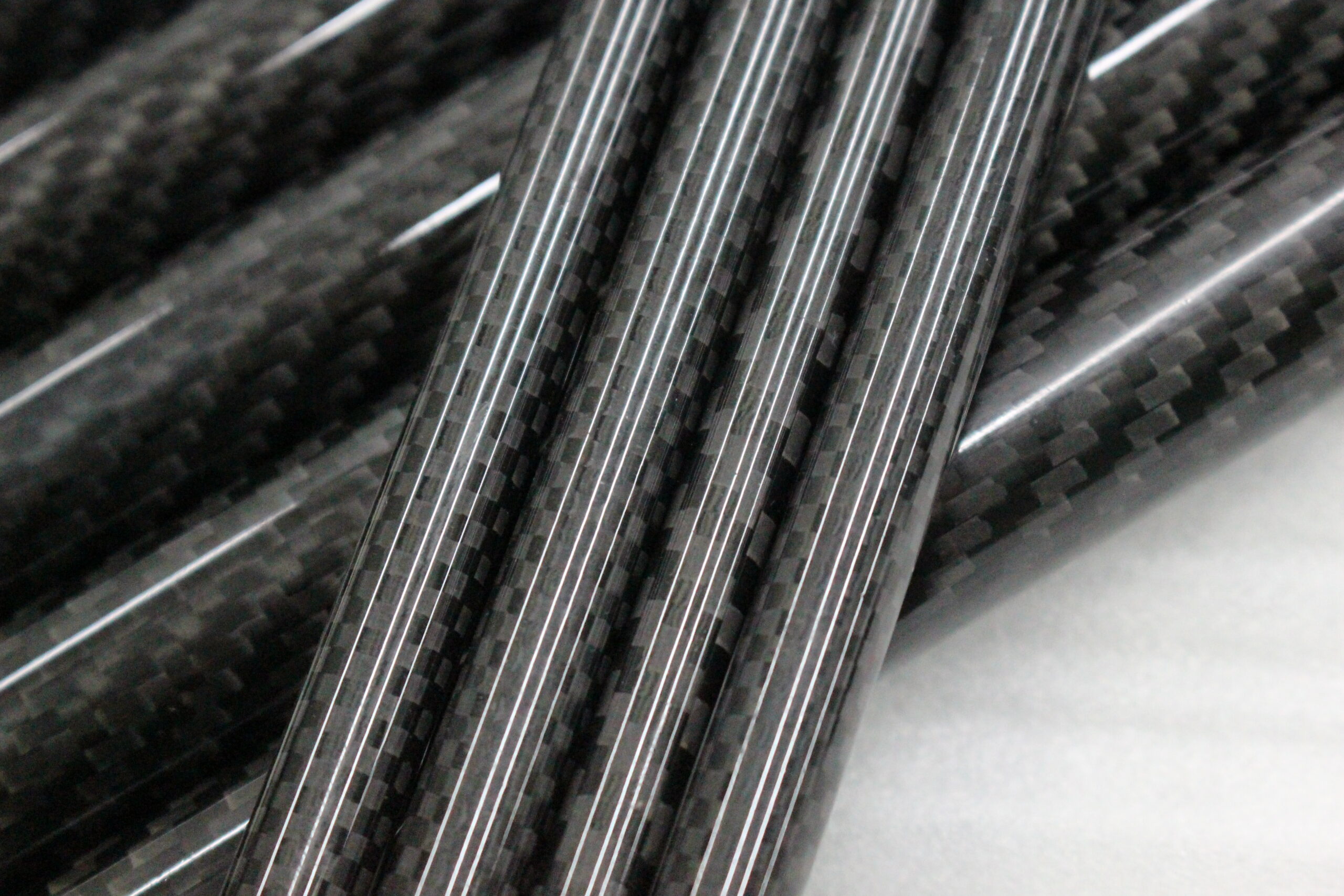

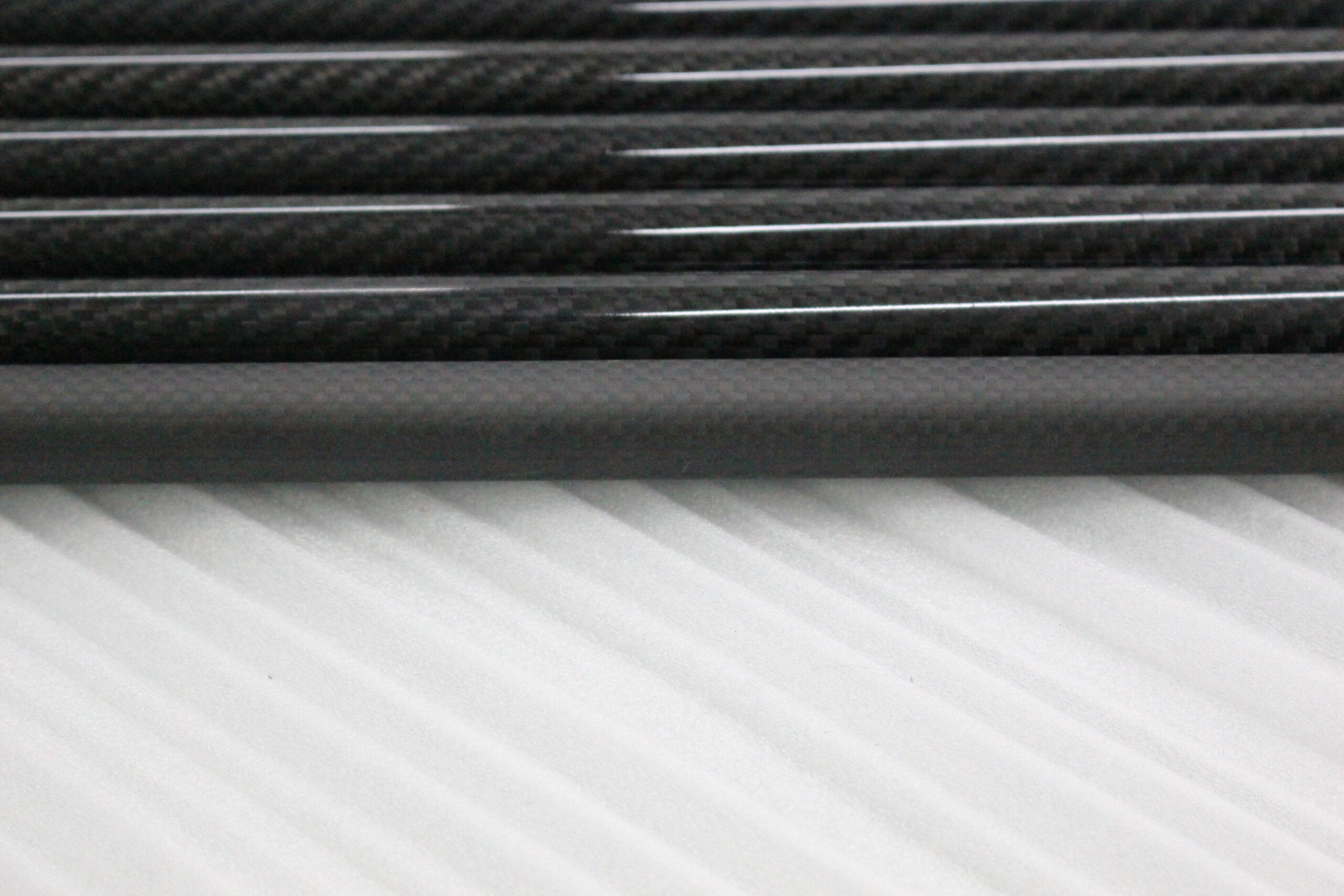

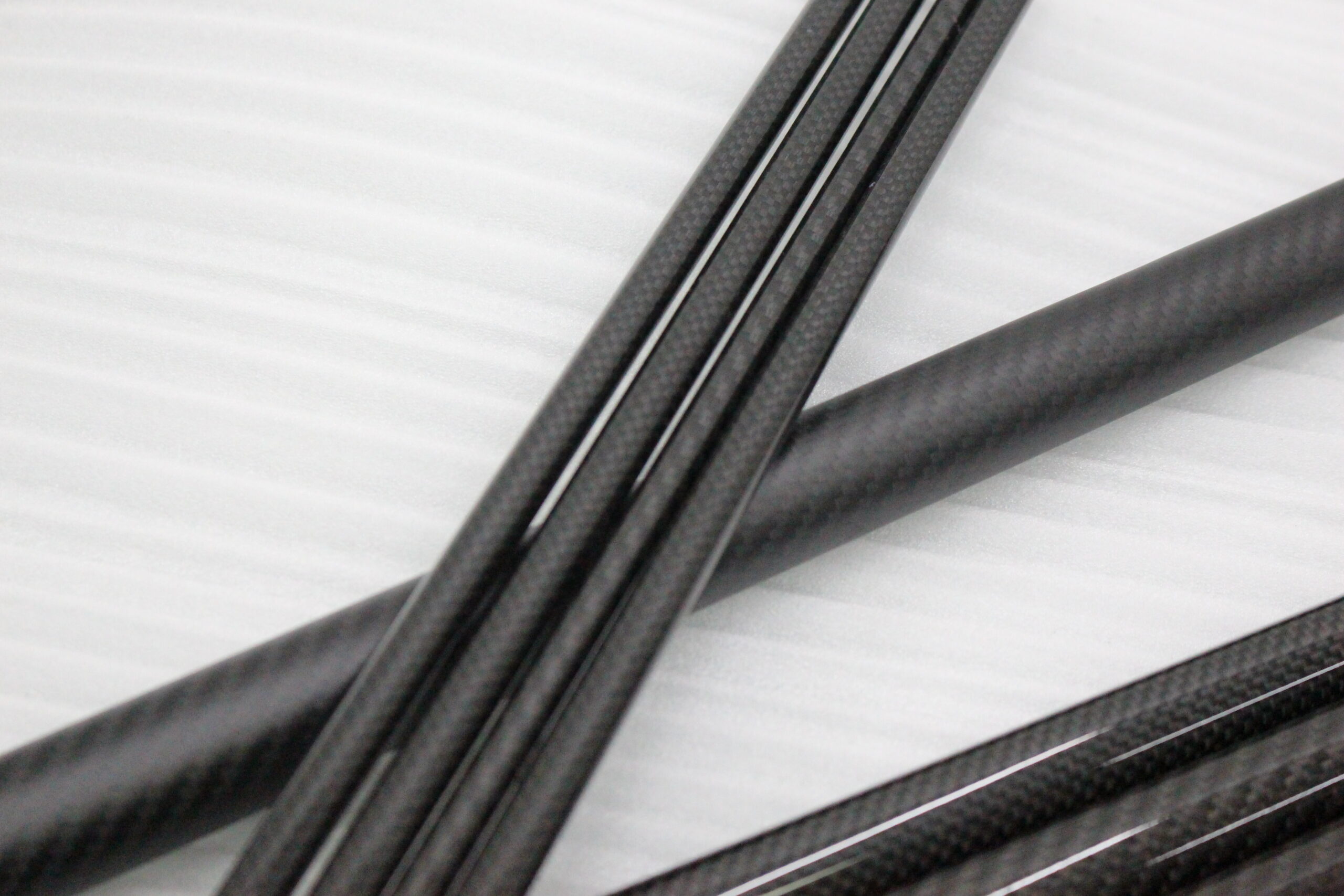

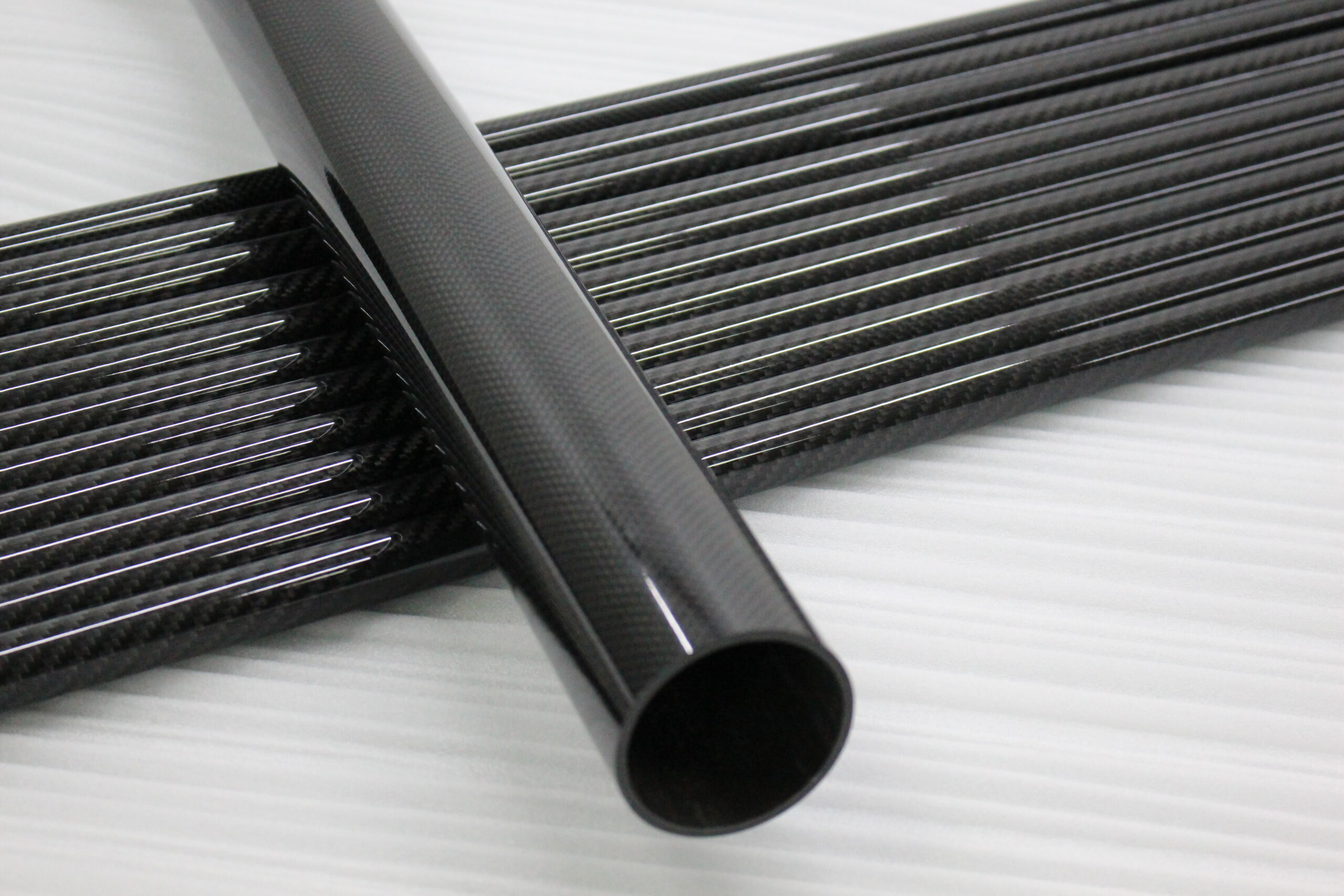

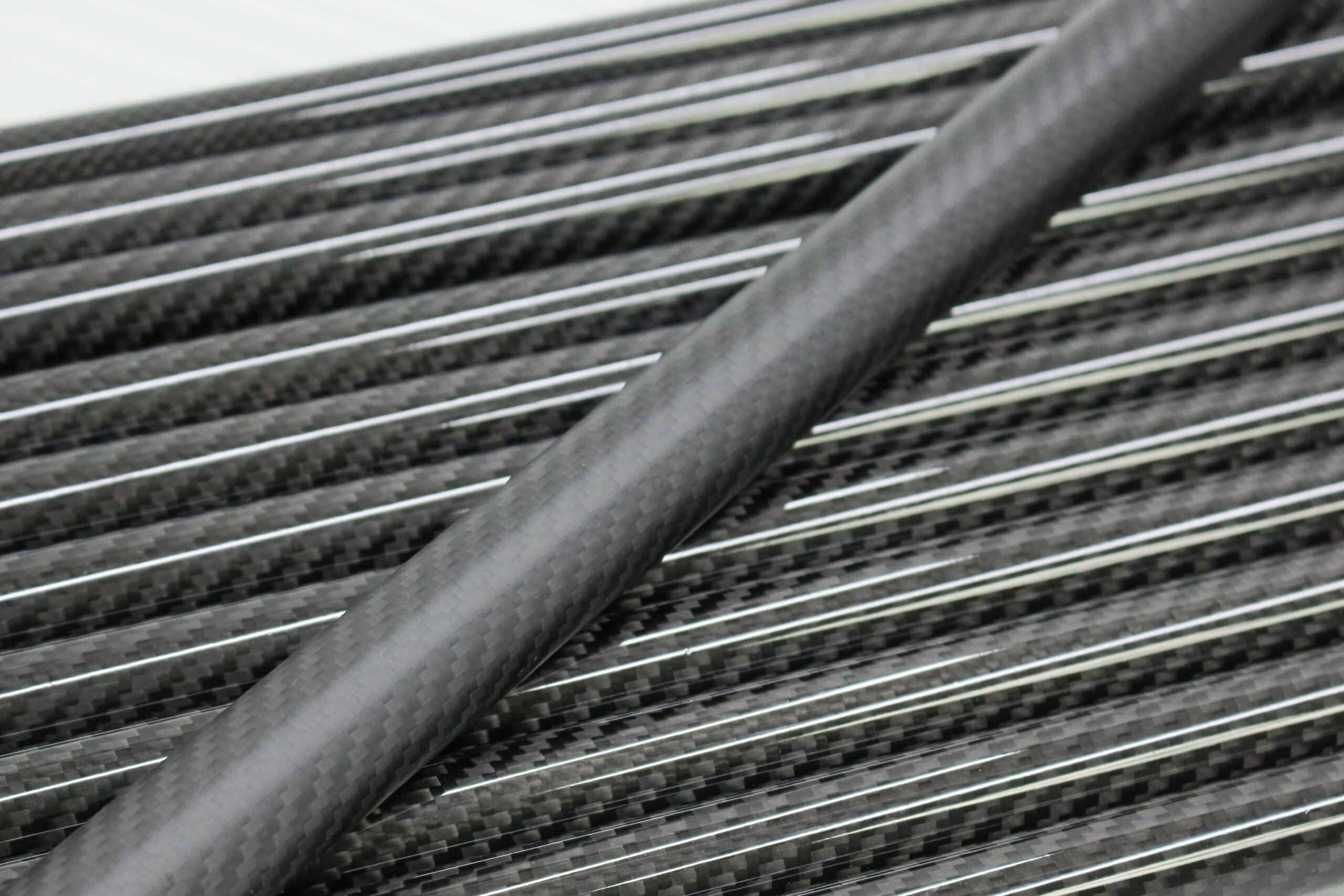

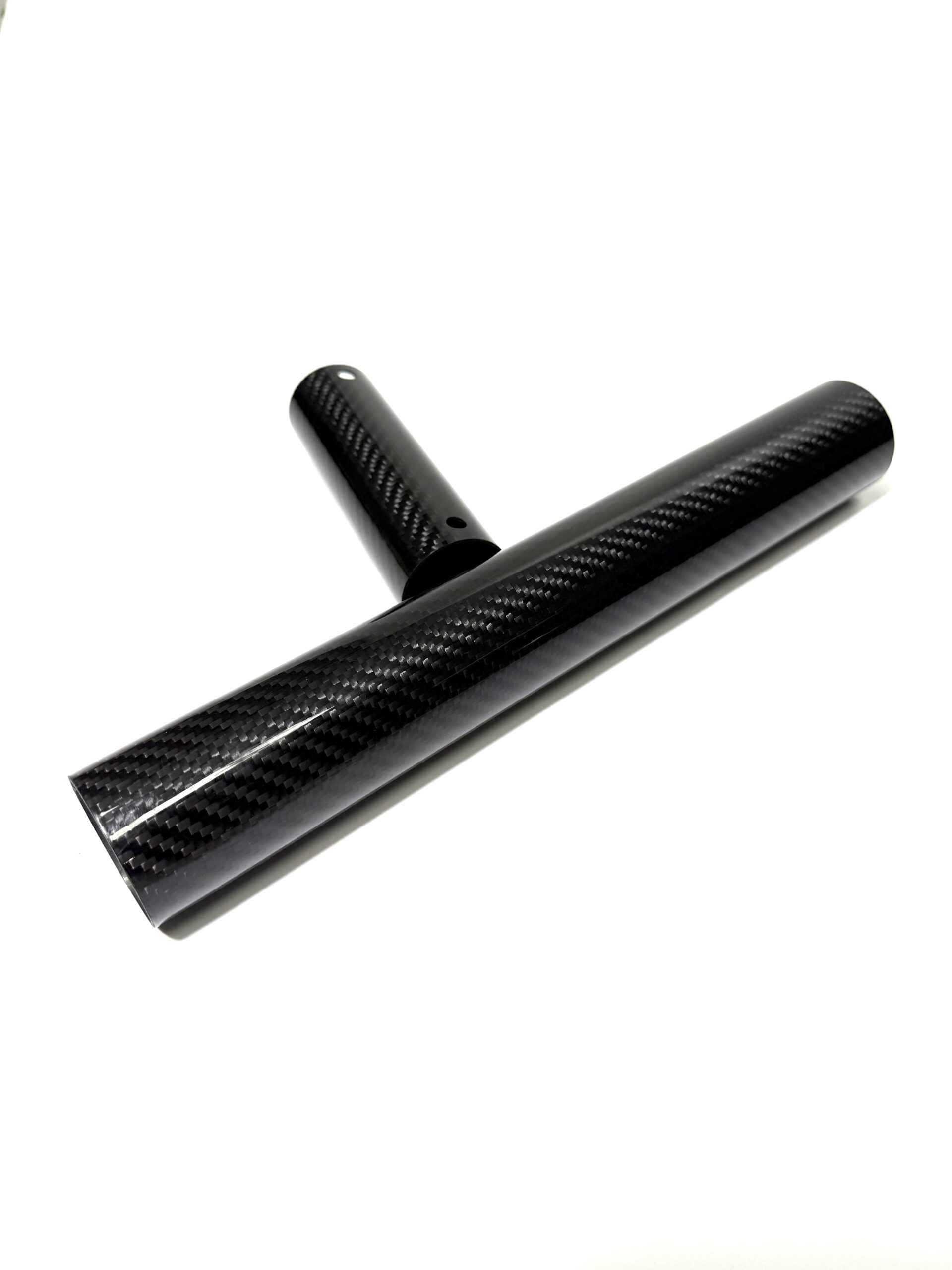

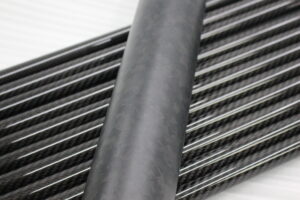

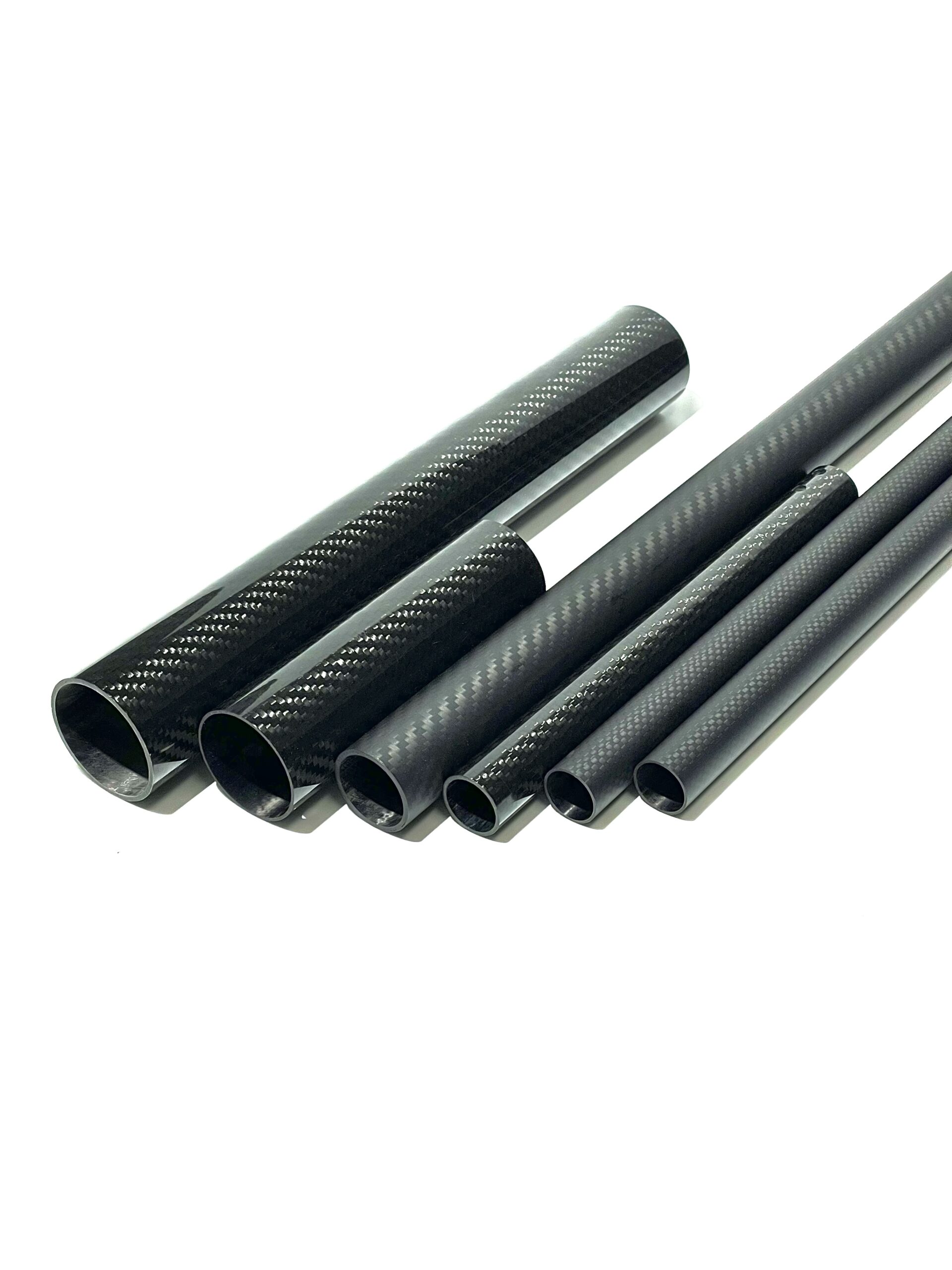

Examples of work

Technologies

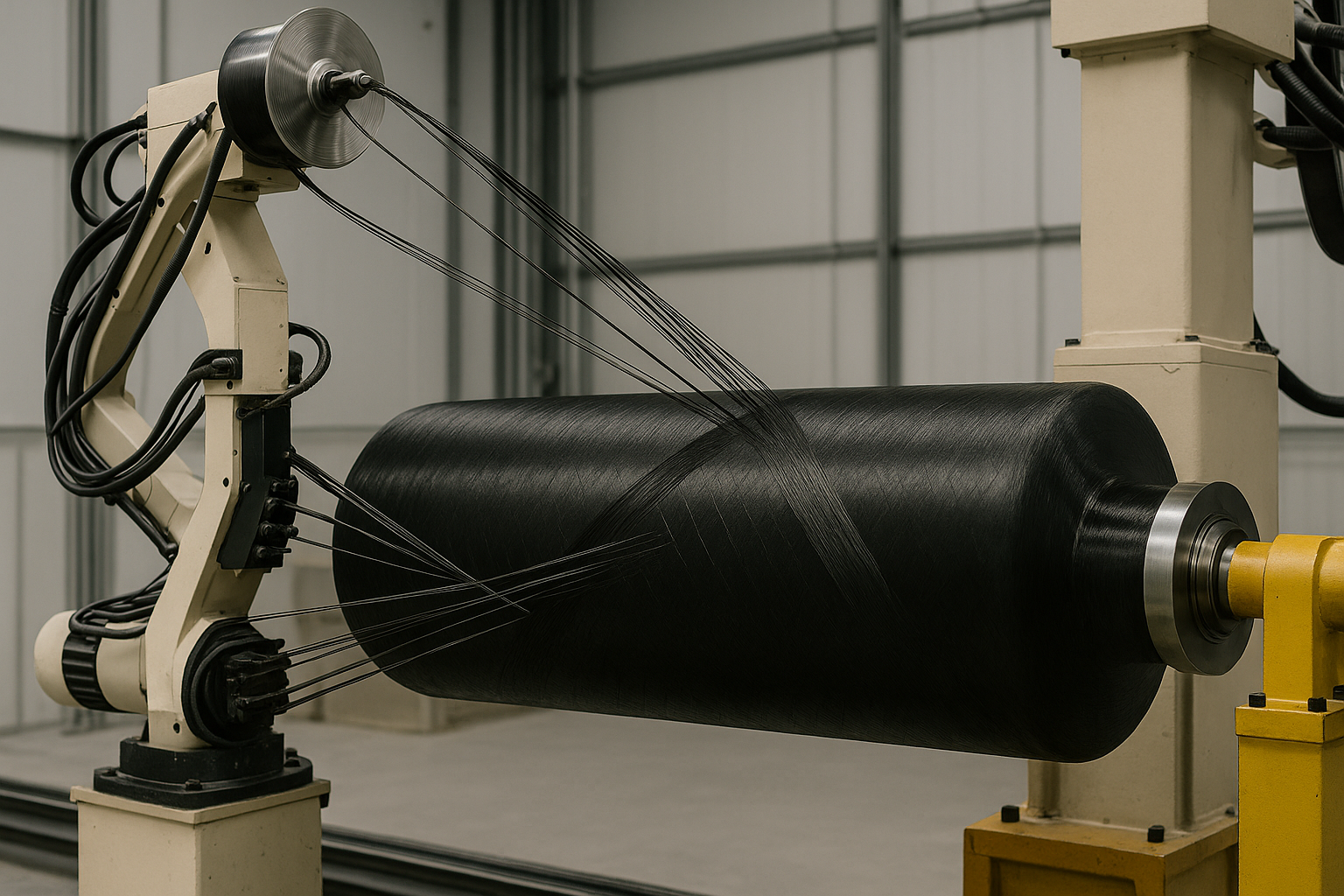

Filament Winding

Ideal for high-strength, large-diameter pipes.
Automated process allows fibers to be laid in the direction of the main loads.

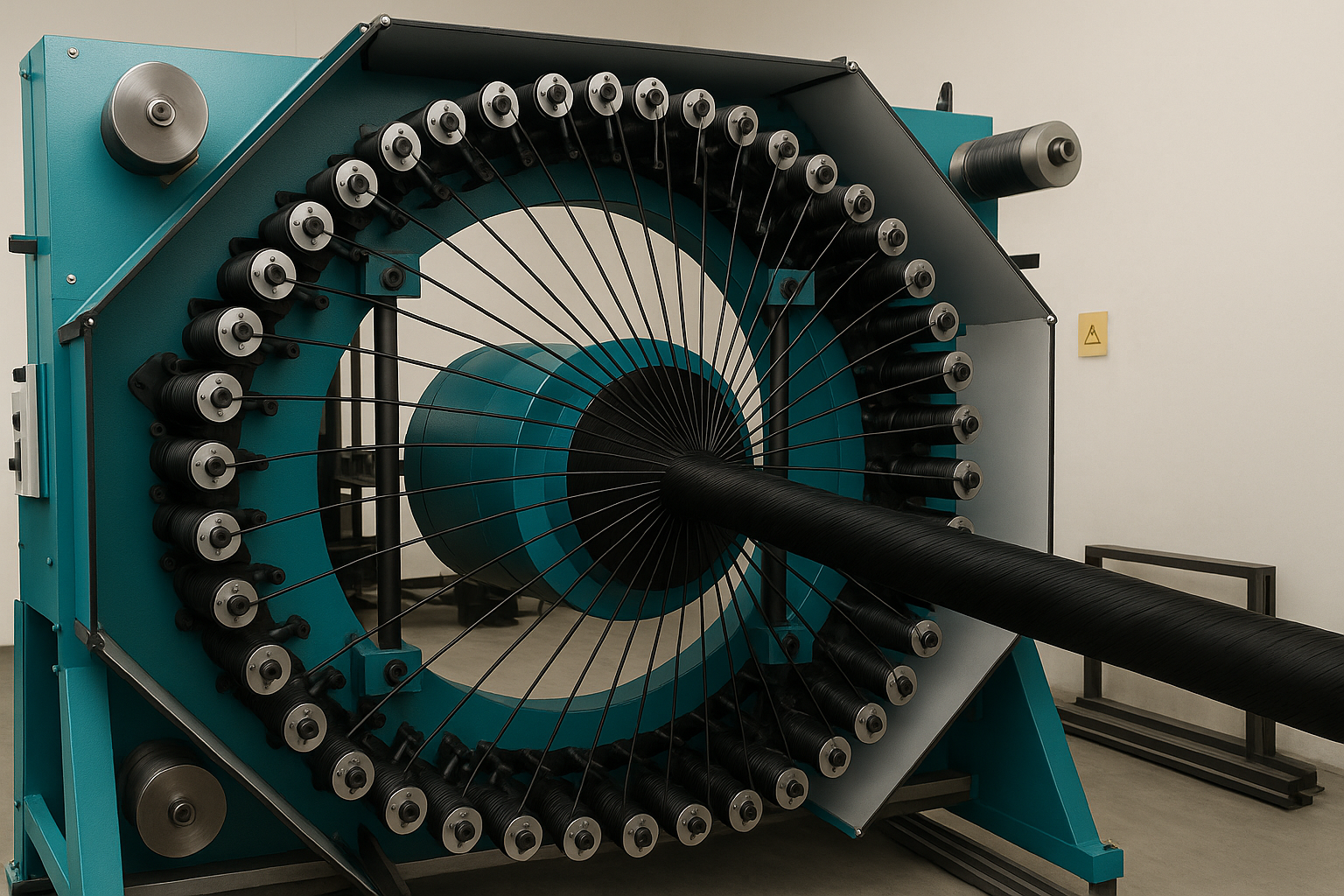

Pultrusion

Continuous production of long pipes with constant cross-section.
The most cost-effective method for large series with consistent quality.

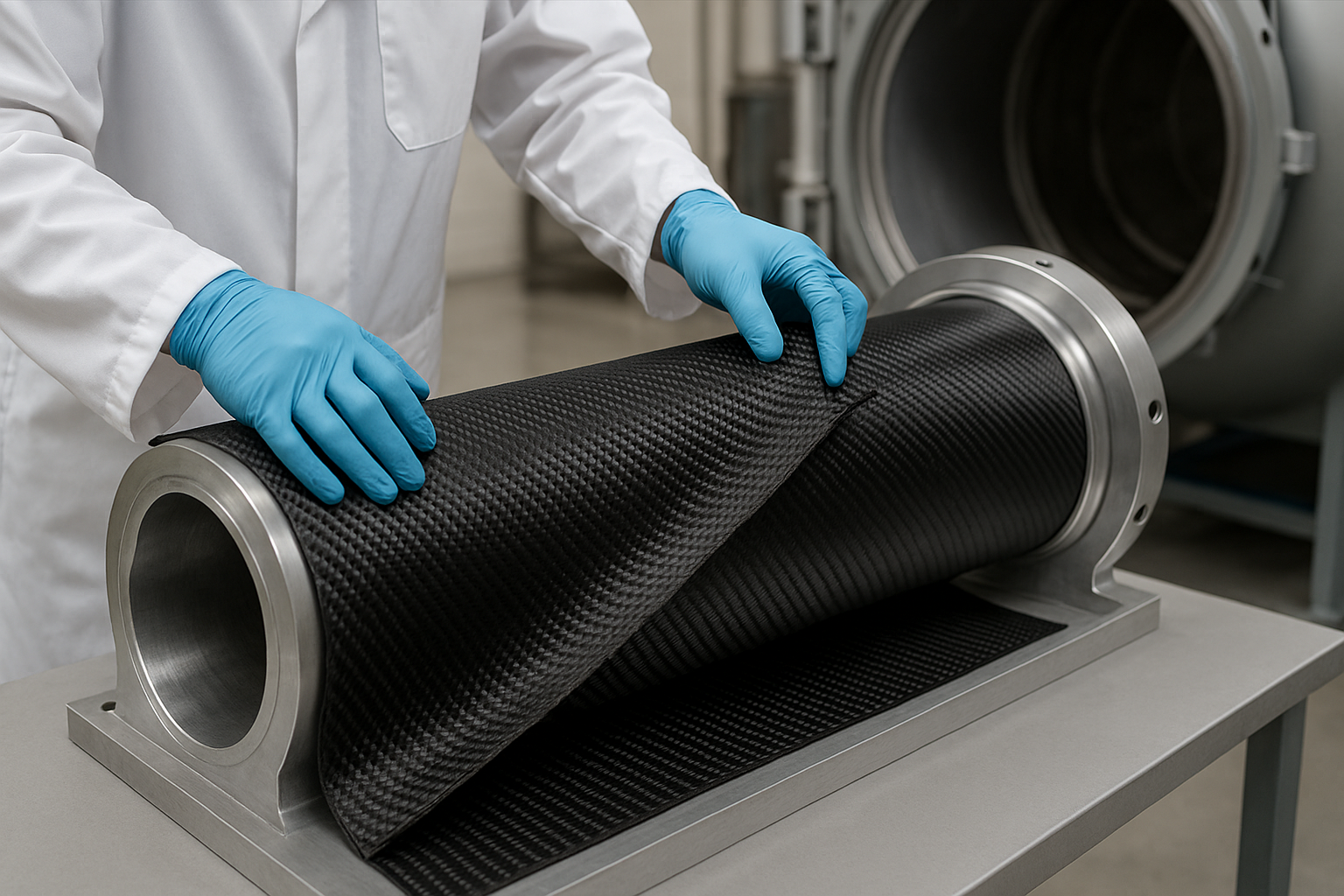

Prepreg + Autoclave

Technology for top-quality products.
Autoclave curing ensures complex geometries and flawless surfaces.

FAQ

1. What is the density of your tubes?

The density of our carbon fiber tubes ranges from 1.43 to 1.6 g/cm³ (1430–1600 kg/m³). This value corresponds to standard characteristics of high-quality carbon fiber reinforced plastic and indicates an optimal strength-to-weight ratio of the material.

2. What is the maximum load your tubes can withstand?

Example: cantilever carbon fiber tube 25×1 mm Test conditions: tube fixed at one end, cantilever length — 0.9 m, load applied to the free end. Result: the tube withstands loads up to 50 kg (≈490 N). Important: for safe operation, the recommended load should not exceed 20–25 kg (with a 2x safety factor).

3. In which areas are your tubes used?

Our carbon fiber tubes are in demand where low weight and high strength are critical:
Industry: lightweight structures, robotics, machine tool components;
Sports and recreation: bicycle frames and forks, drones, karting, boat masts, fishing rods;
Automotive and aviation modeling: load-bearing structures, shafts;
Science and R&D: prototyping, research equipment;
Agriculture: field irrigation systems.

4.Is it possible to manufacture tubes in other colors?

Yes, we offer color options. The standard color is black (due to the carbon fiber and epoxy resin). Upon request, we can apply a decorative layer of colored fiberglass or film to the outer surface. This allows us to produce tubes in white, blue, red, or with a woven carbon texture featuring colored threads without compromising mechanical characteristics.

5. How does carbon fiber behave under prolonged vibrations and cyclic loads?

Carbon fiber demonstrates superior fatigue strength compared to most metals, especially at comparable weight.
Advantage: unlike metals (such as aluminum), which have a clear fatigue limit and accumulate damage under cyclic loads, carbon fiber, thanks to its fibrous structure, handles long-term loads significantly better.
